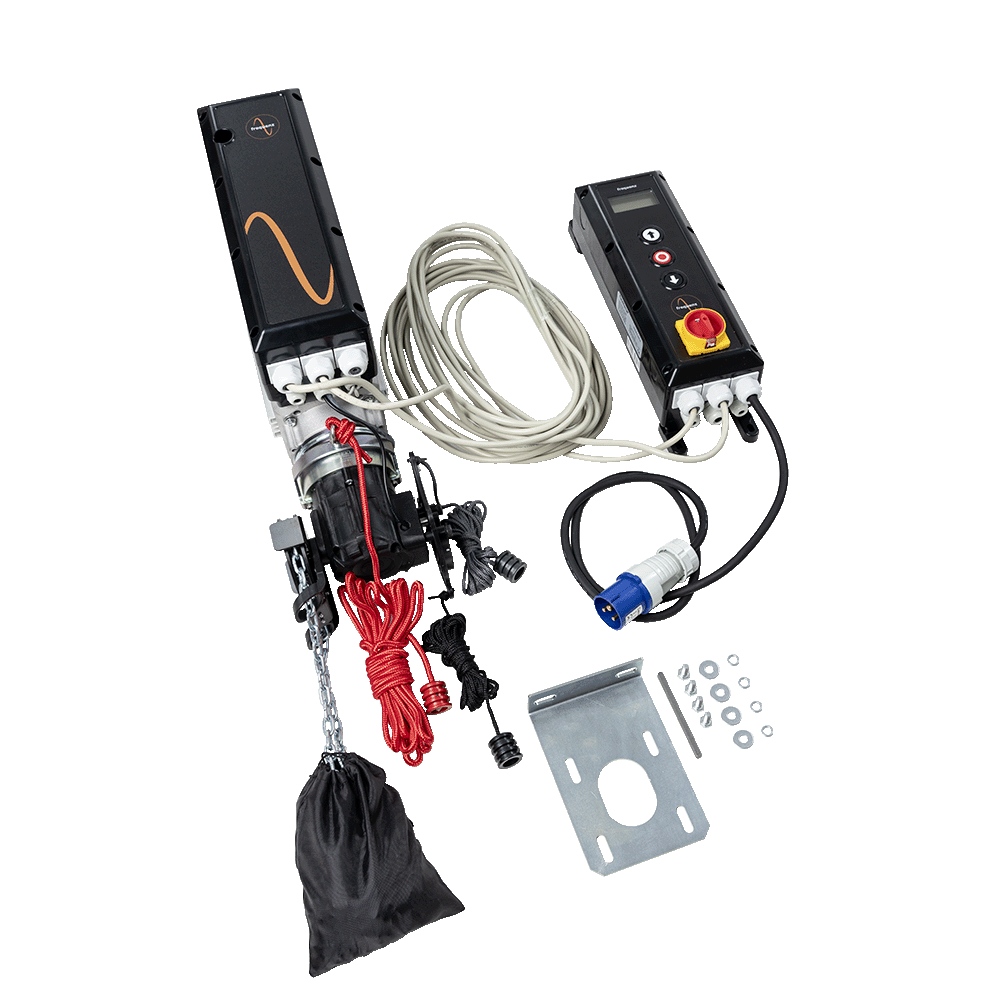

Frequenz 65•230•var. HS•31.75 (alt: 65Nm•230V•var. HS•31.75mm)
Torque 65Nm for doors up to approx. 28 square meters
Supply voltage 230•volt 1 phase
Variable speed with frequency converter High Speed
Soft start/soft stop, speed opening and closing separately adjustable
For doors with a shaft of 31.75 mm or 1 ¼ inch (adapter sleeve 1 ¼ > 1 inch supplied)
motor brake Included
Emergency operation with hand chain (no spring break device required)
Control box with backlit LCD Display
Text menu•driven programming (no codes)
Programming in 4 languages
Digital electronic limit switches
Connection for 2 safety devices, additional push buttons, remote control, etc.
3 potential•free relays, freely programmable (e.g. for traffic lights)
24 V, 750 mA DC power supply for external components
Cable length 7 meters
Available as an optional extra
Plug in receiver 868Mhz 3 channels
Remote control transmitters 868 Mhz 4•channel and 15-channel
Set of connection cables 11 meters between control unit and drive
Torque 65Nm for doors up to approx. 28 square meters
Supply voltage 230•volt 1 phase
Variable speed with frequency converter High Speed
Soft start/soft stop, speed opening and closing separately adjustable
For doors with a shaft of 31.75 mm or 1 ¼ inch (adapter sleeve 1 ¼ > 1 inch supplied)
motor brake Included
Emergency operation with hand chain (no spring break device required)
Control box with backlit LCD Display
Text menu•driven programming (no codes)
Programming in 4 languages
Digital electronic limit switches
Connection for 2 safety devices, additional push buttons, remote control, etc.
3 potential•free relays, freely programmable (e.g. for traffic lights)
24 V, 750 mA DC power supply for external components
Cable length 7 meters
Available as an optional extra
Plug in receiver 868Mhz 3 channels
Remote control transmitters 868 Mhz 4•channel and 15-channel
Set of connection cables 11 meters between control unit and drive
| Merk | Frequenz, Universal |
| Gewicht | 25,00 kg |
